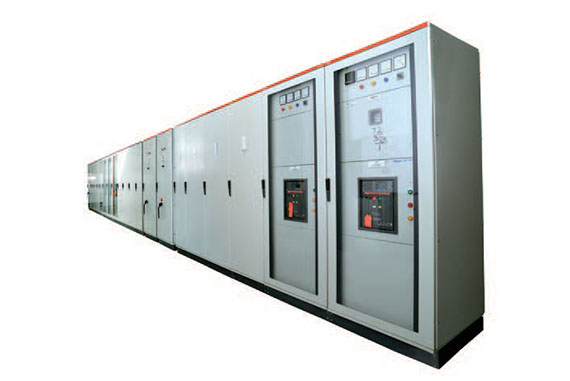

LV Panels
| Ratings at 50°C ambient | Up to 4000A |
|---|---|
| Short Circuit Rating | Up to Icw – 65kA 3 sec Ipk – 143kA |
| Form of Construction | Form 2A & B / Form 3A & B / Form 4A & B |
| Protection Class | Up to IP65 & IK10 |
| Type Testing & Certifications | Fully type Tested including internal arc Test & ASTA Certified. |
| Standards | IEC – 61439 – 1 & 2 |
Withdrawable execution for rating upto 800A, 35kA, 1 sec (available upon request)
SMDB’s
| Ratings at 50°C ambient | Up to 4000A |
|---|---|
| Short Circuit Rating | Up to Icw – 65kA 3 sec Ipk – 143kA |
| Form of Construction | Form 2A & B / Form 3A & B / Form 4A & B |
| Protection Class | Up to IP65 & IK10 |
| Type Testing & Certifications | Fully type Tested & ASTA Certified. |
| Standards | IEC – 61439 – 1 & 2 |
Withdrawable execution for rating upto 800A, 35kA, 1 sec (available upon request)
Automatic Transfer Switch with and without By pass
| Ratings at 50°C ambient | Up to 4000A |
|---|---|
| Short Circuit Rating | Up to Icw – 65kA 3 sec Ipk – 143kA |
| Form of Construction | Form 2A & B / Form 3A & B / Form 4A & B |
| Protection Class | Up to IP65 & IK10 |
| Type Testing & Certifications | Fully type Tested & ASTA Certified. |
| Standards | IEC – 61439 – 1 & 2 |
Feeder Pillars and LCP’s
| Ratings at 50°C ambient | Up to 800A. (Other ratings on request) |
|---|---|
| Short Circuit Rating | Up to Icw – 50kA 1 sec |
| Form of Construction | Form 2 |
| Protection Class | Up to IP65 |
| Type Testing & Certifications | Fully type Tested & ASTA Certified |
| Standards | IEC – 61439 – 1 & 2 |
DC Distribution Boards
| Ratings at 50°C ambient | Up to 4000A |
|---|---|
| Form of Construction | Form 2, 3 & 4 |
| Protection Class | Up to IP65 |
| Standards | IEC – 61439 – 1 & 2 |
Final Distribution Boards (Row type, Single or Multi Split Configurations)
| Ratings at 50°C ambient | Up to 250A |
|---|---|
| Short Circuit Rating | Icw 17kA for 0.25 secs; Ipk 34 kA |
| Protection Class | IP41, 55 & 65 |
| Type Testing & Certifications | Fully type Tested & ASTA Certified |
| Standards | IEC – 61439 – 2 |
400Hz Panel for Aviation Applications
| Ratings at 50°C ambient | Up to 800A. (Other ratings on request) |
|---|---|
| Short Circuit Rating | Upto Icw – 50kA 1 sec |
| Protection Class | Form 2 |
| Type Testing & Certifications | Up to IP65 |
| Standards | IEC – 61439 – 1 & 2 |
